RC720™ HD-RAD

Camera System

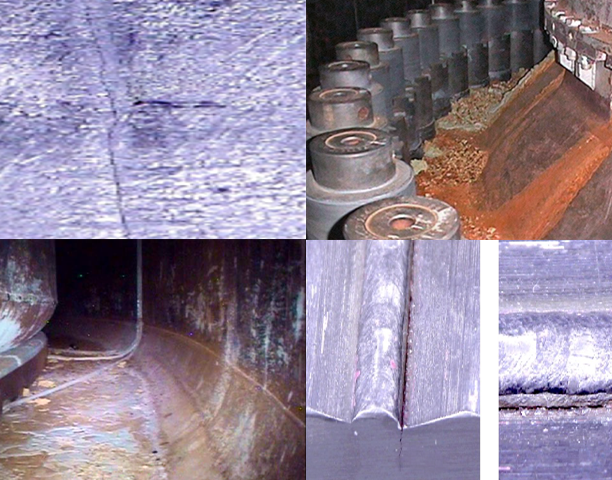

The IST-Rees™ HD-RAD camera combines high definition video performance with a robust pan/tilt/zoom platform that includes a unique clutch assembly to allow fail-safe retrieval. The integral HD camera provides users with the highest quality color images during their inspection/surveillance process.

Tag Features

  • Radiation tolerant to 1 MGy (1 x 108 rad)*
  • Radiation dose rate at 100 Gy per/h (1 x 104 rad/h)
  • Resolution >750 tvl (HD mode)
  • Unique slip clutch for fail-safe retrieval
  • Compact housing
  • Easy replacement of HD module
  • 10:1 optical zoom with 4x digital
  • Variable speed pan and tilt
  • High-intensity white LED lighting
  • Stainless steel construction
  • Standard rack-mount controller with remote control input
  • Rugged, radiation tolerant cable
  • In-air or underwater
  • HD-SDI output for recordings

* excludes replaceable HD/LED modules

Description

Two models are offered with one having four integrated high intensity white LED lighting and a small operating envelope, which is ideal for underwater inspection applications where space is at a premium. The other has two high powered LED lights to provide a greater viewing distance underwater or in air for inspection/surveillance applications.

Both outstation models are rated to a total absorbed dose of 1 MGy and designed to allow easy and cost-effective field replacement of the more radiation sensitive HD module and LED lighting. All external surfaces are finished in stainless steel to allow easy decontamination.

The addition of the HD-RAD product range to the long established IST-Rees products secures Mirion’s position as a leader in the supply of imaging systems to the Nuclear Industry and emphasizes our commitment to the continuous development of our products and services.
