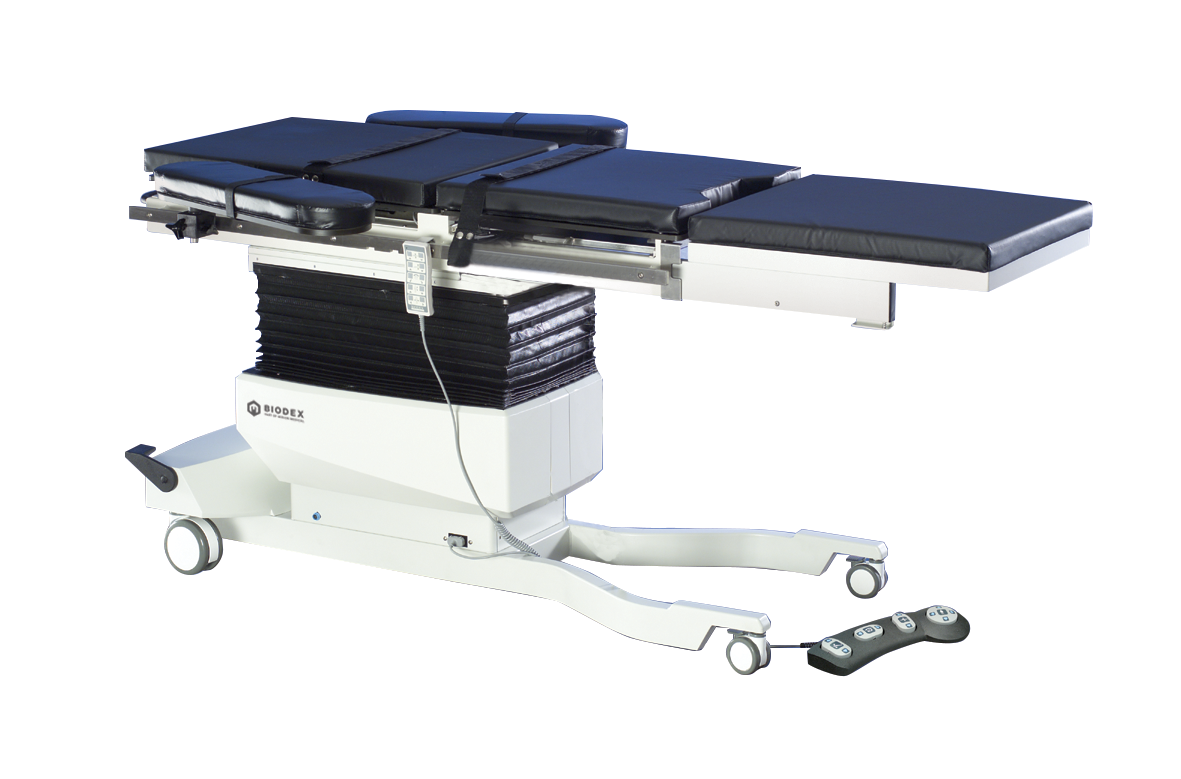

Urology C-Arm Table - 800
Designed for image-guided urologic procedures.
Features

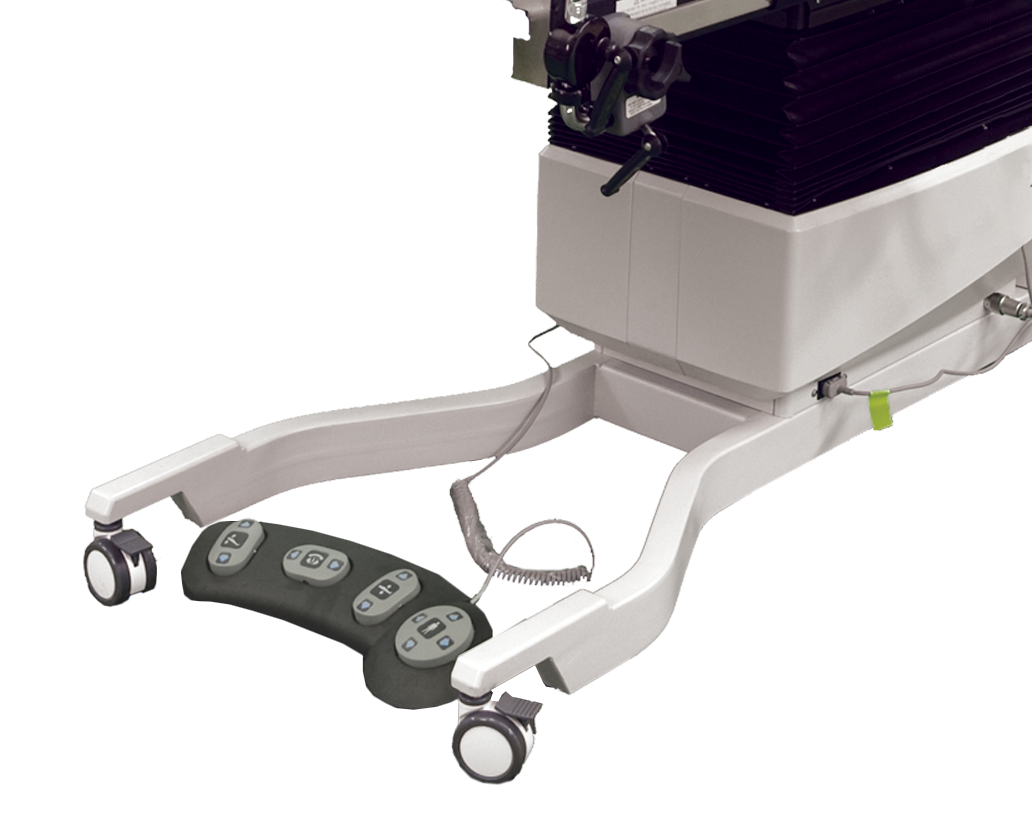

- Widely positioned base legs – For optimal surgeon access to patient
- Foot controller and motorized tabletop – enables hands-free adjustment during procedures
- Five-axis motorized tabletop positioning – X-Y, up/down, Trendelenburg and lateral roll
- Fowler Positioning – Industry exclusive, 0° to 80°
Patient Capacity – 500 lb
- Radiolucent Extension – Adds versatility for general surgery, pain and orthopedic use
- Precision Electric Motor Actuators – No oil or hydraulics
- Low Profile Base – For unrestricted C-Arm movement
- Accessory Rails
- AC and Battery Power – Standard
- Three year limited warranty
Description
The Urology C-Arm Table 800 is an ideal choice for urologic abdominal cavity image-guided procedures. The tabletop is cantilevered to accommodate portable or ceiling-suspended C-Arms and the wider front leg stance offers optimal patient access.
The tabletop easily accommodates bariatric patients while the radiolucent area allows for full fluoroscopic visualization. This functional design offers unobstructed C-Arm positioning while minimizing radiation exposure to clinicians.
Power Motions
The Urology C-Arm Table features motorized actuation of height, X-Y, lateral roll and Trendelenburg motions of the tabletop. The hand-held and foot-operated controllers can be positioned for access from any point around the table and ensure quick and safe tabletop positioning during any phase of a procedure. The “Level” feature returns the table to 0° tilt and 0° lateral roll, bringing the table quickly to a level position. Both controllers can be used for motorized X-Y positioning of the tabletop and feature proportional speed control.
More Adjustments and Features
The table back adjusts with a simple touch-handle lock/unlock mechanism to an 80° angle with incremental stops at 20°, 30°, 40°, 50°, 60°, 70° and 80°.
The table comes equipped with a lightweight, non-imaging patient transfer extension and a radiolucent extension. The radiolucent extension provides capability for vascular, cardiac and other general C-Arm applications. Select from knee crutches or stirrups, standard arm board or with rail clamps – configure to your exact specifications.
Models & Ordering
| 058-800 | Table, Urology C-Arm, 115 VAC |
Export models available. | |
Optional:
| 058-962 | Stirrups, 350, w/Sec-LOK Strap US Rail Clamp (pair) |
| 058-963 | Knee Crutches, Goepel w/rd. Rail Clamps US (pair) |
| 058-967 | Knee Crutches, Goepel w/rd. Rail Clamps EU (pair) |
| 058-972 | Cart, Stirrup, Locking Castor |
| 056-851 | Drain Bag Frame Includes 10 drain bags |

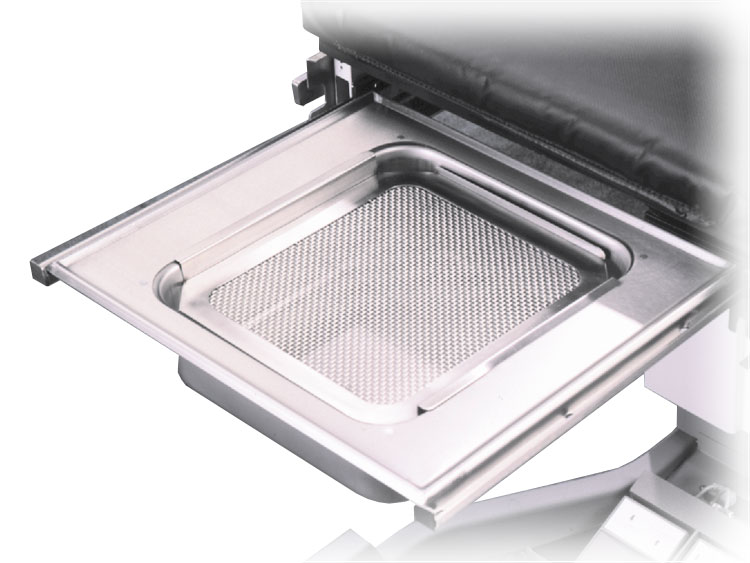

| 058-860 | Drain Pan, Stainless Steel |
| 058-964 | Arm Board w/Rail Clamps, US |
| 058-968 | Arm Board w/Rail Clamps, EU |
| 058-865 | Arm Board, Standard (pair) |
| 056-463 | Grid, X-ray |
| 058-866 | Cassette Tray, 11" x 14" |
| 056-850 | IV Pole, rail mounted |
| 056-862 | Battery and Wall Charging Unit, 115 VAC |
| 056-863 | Battery and Wall Charging Unit, 230 VAC |
| 056-802 | Bellows Skirt, disposable plastic, 250/roll Fits Surgical C-Arm Tables 840, Urology C-Arm Table and Brachytherapy Table |
| 046-275 | Dispenser, Disposable Protective Roll For 056-802 Bellows Skirt. Wall mounted. |
Replacement:
| 056-460 | Hose, Drain, Urology, 40/cs |
| 056-857 | Drain Bags, Sterile, Disposable, 10/pkg |
Biodex Delivery Options for all Imaging Tables*
Dock-to-Dock Delivery – the quickest and most economical delivery service. Requires a raised loading dock at delivery address. White Glove Service – Inside, full-service delivery. Table is uncrated and brought to customer designated area. All debris is removed. Loading dock is not required. Future Delivery – Request delivery of imaging table for a specified future date. Indicate on P.O. when delivery is preferred along with type of delivery. *Offered in the US only. Charges for delivery services apply. Ask for details when placing your order. |
