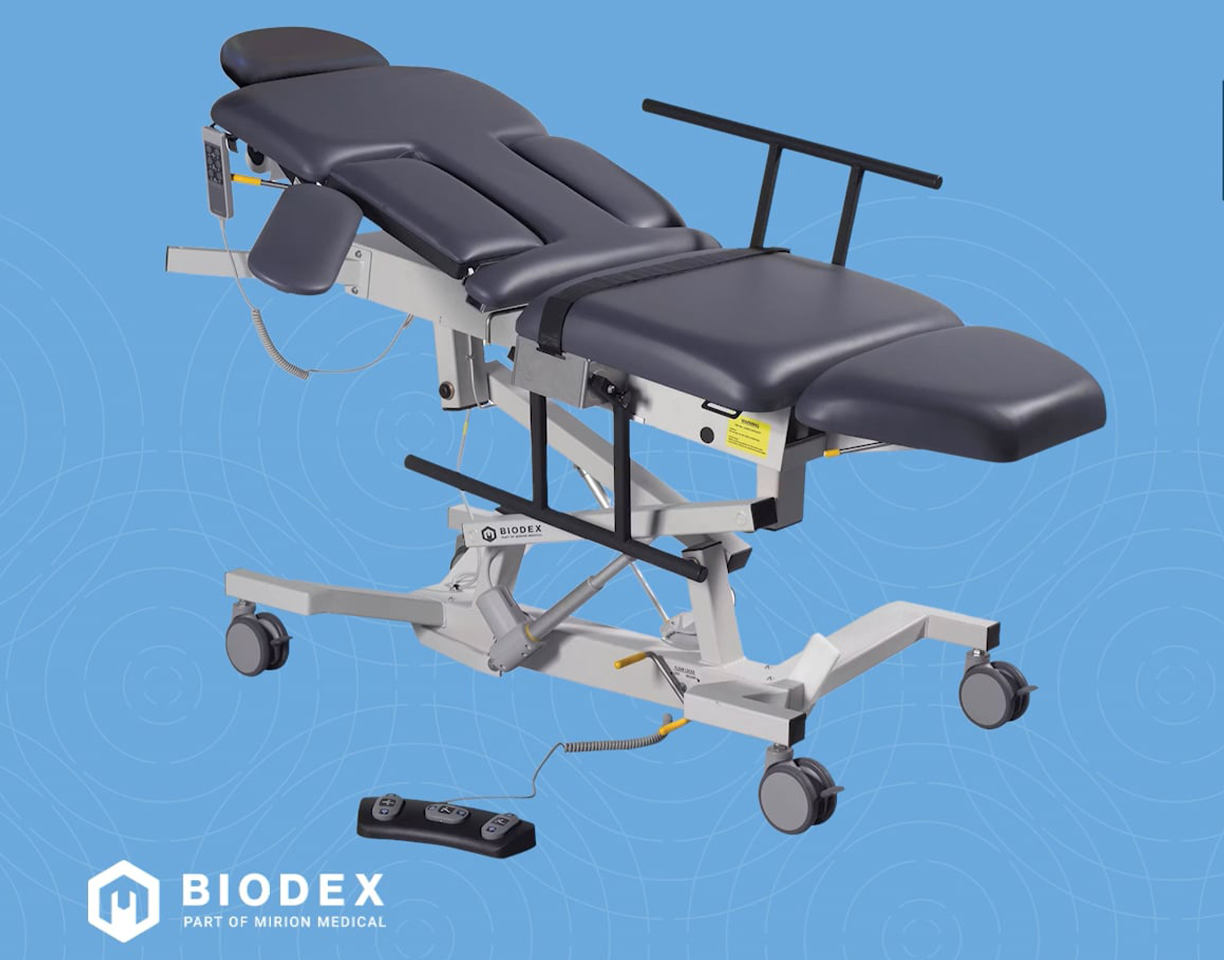

Echo Pro™ Echocardiography Table

Biodex Ultrasound Tables: What makes them stand out?

Unobstructed patient access ensures sonographer comfort.

Request Info
Data Sheet

Tag Features

  • Ergonomic design helps prevent musculoskeletal injuries – comfortable shoulder, arm and hand positions when scanning
  • Extra wide top with 500-lb patient capacity, suitable for bariatric patients
  • Open chassis design for unimpeded patient access
  • Cardiac drop-down cushion, allows release and return from either side of table
  • Industry’s largest cardiac scanning cutout – 9.5" w x 15.75" l
  • Fowler positioning, 0-80 degrees, redesigned to accommodate natural body extension and sitting position without slide or shift
  • Height range down to 23" accommodates wheelchair transfers and those with ambulatory difficulties
  • Motorized height, Fowler positioning, Trendelenburg/Reverse Trendelenburg and auto-level adjustment
  • Naugahyde® antimicrobial mattress cover with Advanced BeautyGard® provides protection against bacteria
  • Central floor-locking system maintains table stability
  • Durable hand controller
  • Allows seated or standing work positions
  • Three year limited warranty

Optional

  • Foot Controller is ideal for when hands are busy with other functions
  • Side rails mount flush to table for unencumbered patient access
  • Articulating Scanning Arm Board, adjustable from 0 to 130 degrees
  • IV Pole easily attaches for quick convenience
  • Paper Dispenser accommodates a roll of hygienic table paper. Includes a cutter strap.
  • Headrest drops down 15 degrees to allow for carotid and thyroid studies

Description

The Echo Pro Echocardiography Table is engineered with the sonographer in mind. The ergonomic design provides a barrier-free imaging experience, resulting in less sonographer injury and better quality images.

The table’s open chassis features make it easier for the sonographer to access the patient from all sides. The cardiac scanning cushion drops down and releases from either side of the table. The sonographer has open access to the left thorax area for an unobstructed apical approach. Side rails mount flush to the table and fold completely beneath the table when not in use.

Patient comfort is assured, even during lengthy procedures with our Naugahyde antimicrobial mattress cover.

Add options such as an Articulating Scanning Arm Board or Headrest for easier thyroid and carotid access to configure the Echo Pro table to fit your department needs.

Suitable Procedures:

  • Abdomen
  • Aorta
  • Thyroid
  • Breast
  • Carotid
  • Lower Extremity Arterial
  • Upper Extremity Arterial*
  • Renal Transplant
  • SMA
  • Stress Echo
  • Renal
  • Pelvis
  • Testicular
  • Musculoskeletal
  • Upper Extremity Venous*
  • Renal Artery
  • Abdominal Doppler
  • Echocardiography
  • Transesophogeal Echo

*Requires optional Articulating Scanning Arm Board.

All motorized tables are ETL product listed to the UL 60601-1 Medical Electrical Equipment Safety Standard.

Accomodates Bariatric Patients

Models & Ordering

058-700Table, Echocardiography, Echo Pro™ 115 VAC
Includes Hand Controller.

Export models available.

Related:

058-704Chair, Ergonomic, Sonography

Optional:

058-741Foot Controller
For 058-700, 058-702, 058-720, and 058-732 Ultrasound Tables.
058-633Side Rails, Folding
058-736Arm Board, Articulating Scanning
058-737IV Pole
058-611Dispenser, Paper
with Cutter Strap
058-738Headrest

*Note: Options are installed by the customer.

Replacement:

056-612Table Paper, Hygienic, 12 rolls
18" w x 225' l (46 cm x 69 m)

Biodex Delivery Options for all Imaging Tables*

Dock-to-Dock Delivery – the quickest and most economical delivery service. Requires a raised loading dock at delivery address.

White Glove Service – Inside, full-service delivery. Table is uncrated and brought to customer designated area. All debris is removed. Loading dock is not required.

Future Delivery – Request delivery of imaging table for a specified future date. Indicate on P.O. when delivery is preferred along with type of delivery.

*Offered in the US only. Charges for delivery services apply. Ask for details when placing your order.
