CRC®-55tPET

Capintec svg mirion medical

Dose Calibrator

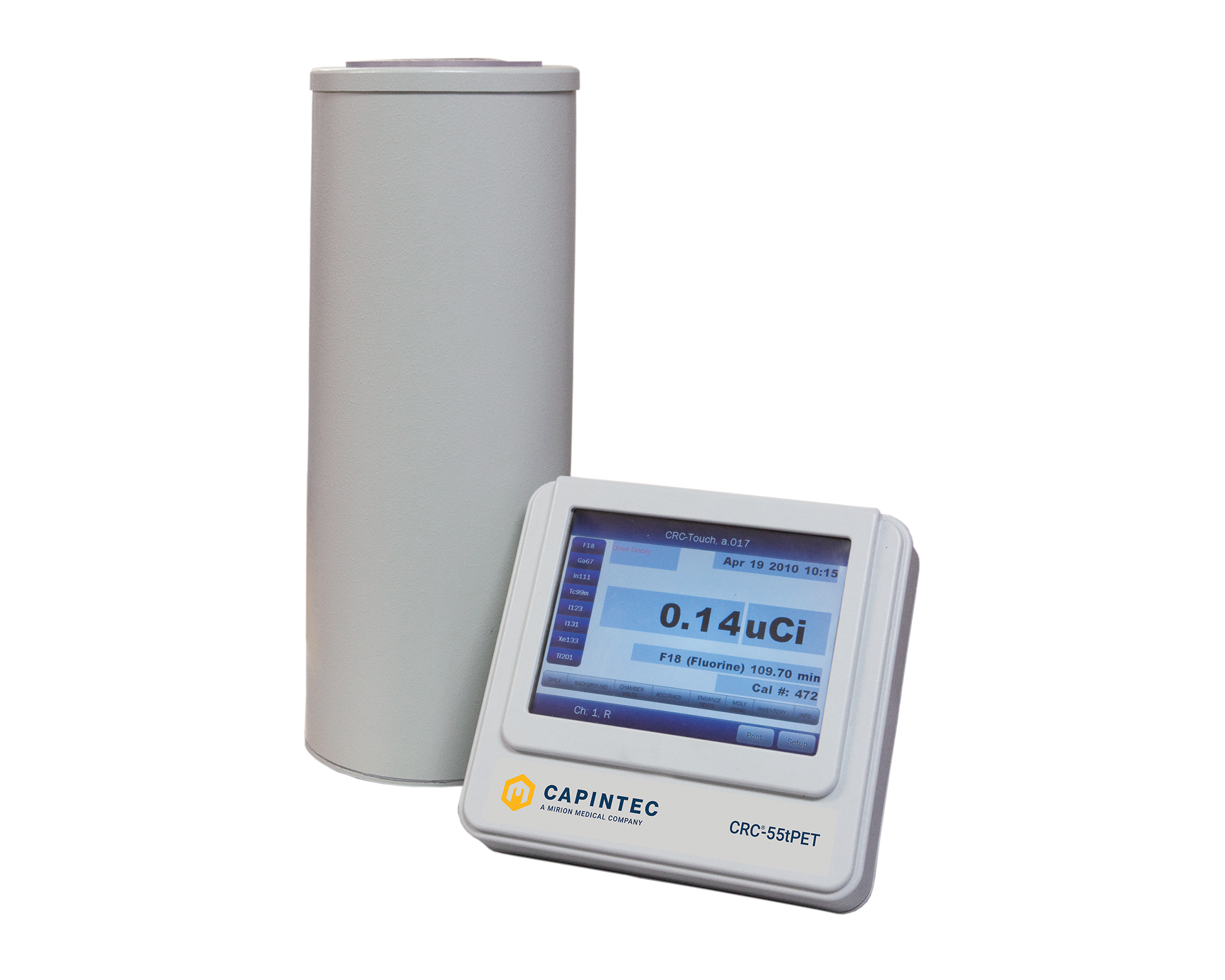

Crc 55tpet dose calibrator

Introducing the new standard for speed and accuracy in measuring PET isotopes.

Tag Features

  • 8 in. color VGA touch screen display
  • USB/PC Communications
  • Software upgrade via USB or Flash Drive
  • USB printer capability
  • Single or optional second plug-and-play chamber with mixed chamber capability
  • Chamber can be placed 100 feet from the readout unit
  • Bilingual (English/Spanish) Software
  • On-screen display of Nuclide, Activity, Unit of Measure and Calibration Number
  • Large character, high visibility display
  • Full alpha numeric touchpad
  • Built-in dose calibration, quality control and self diagnostics
  • Has a maximum activity up to 20 Ci of F-18
  • Compatible with Nuclear Medicine Management Systems via USB
  • Optional printer for regulatory records and patient labels for syringes and vials
  • Over 80 nuclide symbols and half-lives in memory
  • Automated Geometry and Linearity Testing

Description

The Capintec™ CRC-55tPET dose calibrator combines the ultimate features with the quality and versatility that you’ve come to expect in one of the industry’s finest packages. Using the menu-driven, color touch screen interface, the CRC-55tPET calibrator’s reduced chamber pressure and increased bias voltage increases the maximum activity range for high energy PET isotopes. The CRC-55tPET unit’s performance and reliability have been designed to meet the demanding needs for speed and accuracy in the preparation and measurement of doses in any laboratory environment.

The enhanced 55t software supports dual chamber technology with an innovative functional design that includes a large, easy-to-read display that specifies Nuclide Name, Number, Activity, Unit of Measure and Calibration Number.

Entering data through the custom touch screen interface is fast and includes 28 programmable keys. The user can select from 80 nuclides by simply selecting the nuclide symbol on the touch screen interface.

Additional capabilities include storage of reference sources in memory that automatically decay corrects for today’s time and date. Automated quality control tests and self-diagnostics are built-in with automatic zero and background subtraction making the CRC-55tPET calibrator exceptionally easy to use. An optional printer enables the CRC-55tPET unit to print full size records and patient tickets with peel off labels for vial and syringe identification.

¿Se habla español? New to the 55t family is bilingual English/Spanish software!

Features including USB/PC communications, printer capabilities, USB flash drive software for upgrades and plug-and-play chamber make the CRC-55tPET calibrator an integral tool in improving your department’s efficiency.

Mirion Medical Nuclear Medicine solutions offer excellence in energy measurement, customer service, training and support.

Models & Ordering

5130-3235CRC®-55tPET Dose Calibrator
5130-2238CRC®-55tPET Multiple Chamber Option
Optional Components
7300-2903CRC-PS Positron Shield
5130-2238Epson Roll Printer
5430-0100Epson Ticket Printer
7120-1199CRP-200 Dose Tickets & Labels
7300-2450Environmental Shield
7300-2004Liner
7300-2005Dipper
