KG 50/51 SEC

Gamma Ionization Chambers

High range gamma dose rate monitoring under accident and post accident conditions.

Request Info

Data Sheet

Features

Data Sheet

Large measuring range up to 100 kGy/h
Saturation proof
Rugged construction
Long life time
Energy range: 60 keV to 7 MeV
Output signal: DC current starting at 1 pA
Up to 70 m (230 ft) of metal shielded cable, extension cable available
Ambient conditions up to 205°C (401°F), 7 bar
LOCA qualiﬁed

Description

The KG 50/51 SEC ionization chambers have been developed for high range gamma dose rate monitoring under accident and post accident conditions. Gamma radiation produces charged particles in the gas filling of the ionization chamber. The transportation of these charged particles in the electrical fi eld and their discharge on the electrodes causes charge pulses. The charge pulses are integrated to a DC current, which can be measured in the external circuit.

The KG 50/51 SEC ionization chambers may be connected to signal processing units, both, of the RAMSYS or proTK family.

Do you have a question or need a custom solution? We're here to help guide your research.

Ask an Expert

Related Products

KG Series Gamma Ionization Chambers

Gamma radiation produces charged particles in the gas ﬁlling of an ionization chamber. Transportation of these particles in the electrical ﬁeld between the electrodes generates a DC current, which can be measured in the external circuit.

KG 220 SEF Gamma Ionization Chambers

Low and medium range gamma dose rate monitoring in nuclear facilities.

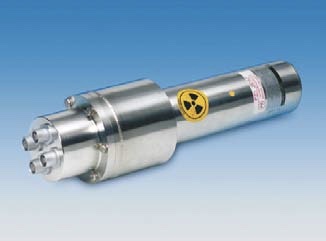

KG 80 PED/PEF Gamma Ionization Chambers
