Pain Management C-Arm Table - 870

Innovative design optimizes patient access, increases imaging resolution and saves space.

Tag Features

  • Carbon-Fiber Tabletop – 0.7 mm attenuation (1.2 mm with pad) design
  • Isocentric Lateral Roll Motion – Maintains image center during tabletop movement, minimizing image distortion (+/- 15°)
  • Radiolucent Area – Large, 70"
  • Trendelenberg Motion – 0° to 20°
  • High-Speed Actuators – Assure quick tabletop positioning, height adjustability, isocentric lateral roll and Trendelenburg motions
  • Choice of Contoured or Rectangular Design – Contoured tabletop features a face cutout for comfortable prone positioning
  • Enhanced Patient Comfort – Table padding is 2" thick; includes 3 adjustable straps
  • Precision Electric Motor Actuators – No oil or hydraulics
  • Table Base – Encased in stainless steel, easy to clean
  • Hand and Optional Foot-Operated Controllers – For convenient positioning
  • Patient Capacity – 500 lb
  • Low Profile Base – For unrestricted C-arm movement
  • Accessory Rails
  • Three year limited warranty


The Pain Management C-Arm Table 870 is designed for image-guided fluoroscopic procedures where stability, access, and precise, quiet, vibration-free positioning are essential. A cantilevered low attenuation carbon-fiber tabletop, with choice of contoured or rectangular design, accommodates portable or ceiling-suspended C-Arms. The standard contoured top with face cutout provides ample workspace for anesthesiologists, yet the narrowness required for cervical procedures. The rectangular top offers additional space to promote superior image quality for long-leg runoff studies.

The 24"-wide tabletop easily accommodates bariatric patients while our 70"-long radiolucent area allows for full fluoroscopic visualization over its 97"-long top.

Automatic Positioning

A portable hand-held or optional foot-operated controller can be positioned for convenient access from any point around the table. Both controllers offer the freedom to adjust height, isocentric lateral roll, return-to-level and Trendelenburg motions allowing for unobstructed C-Arm positioning and reduced radiation exposure to clinicians. The foot-operated controller can be used when hands are busy with other functions.

Models & Ordering

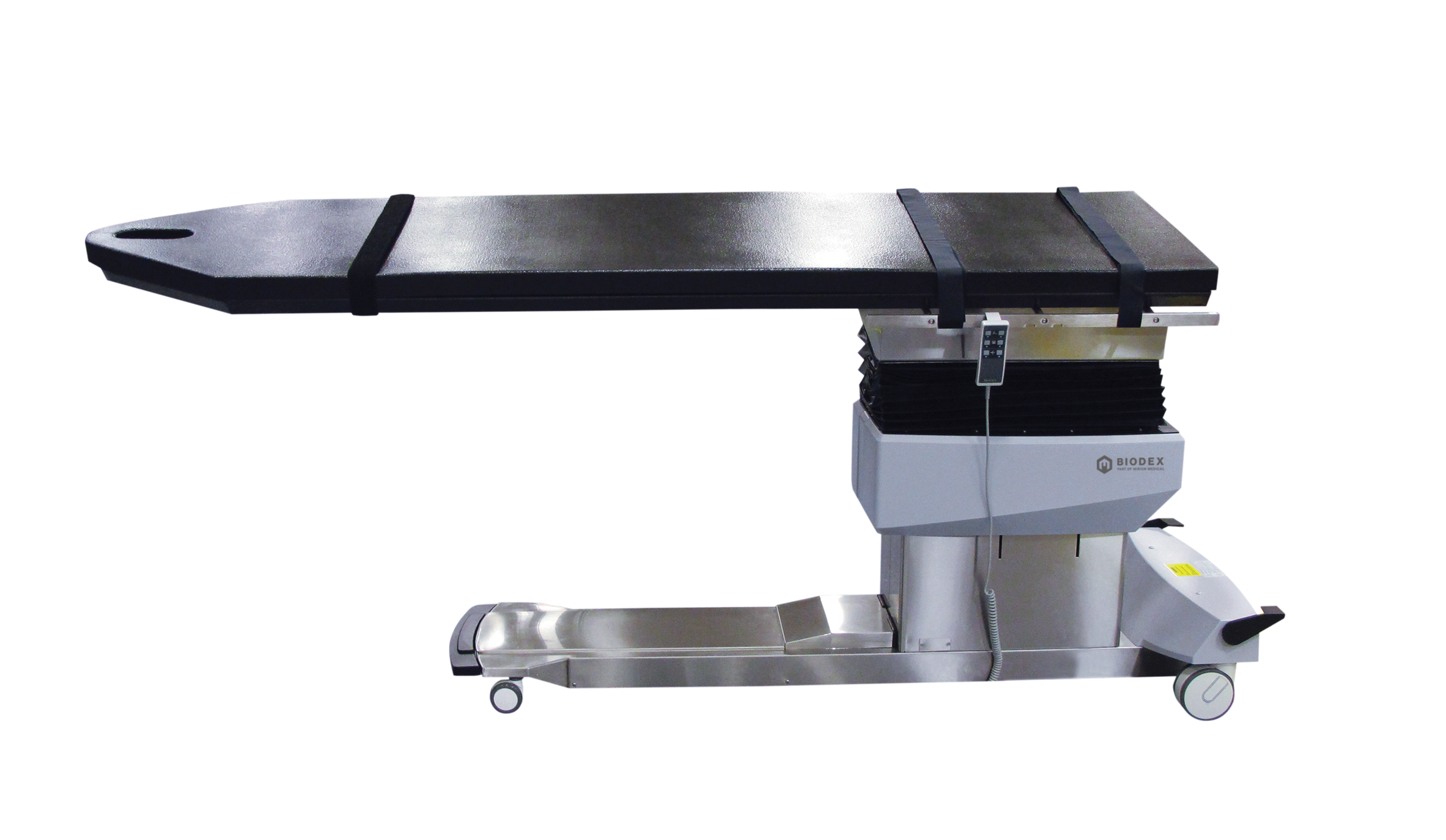

058-870Table, Pain Management C-Arm - 870, Contour, 115 VAC

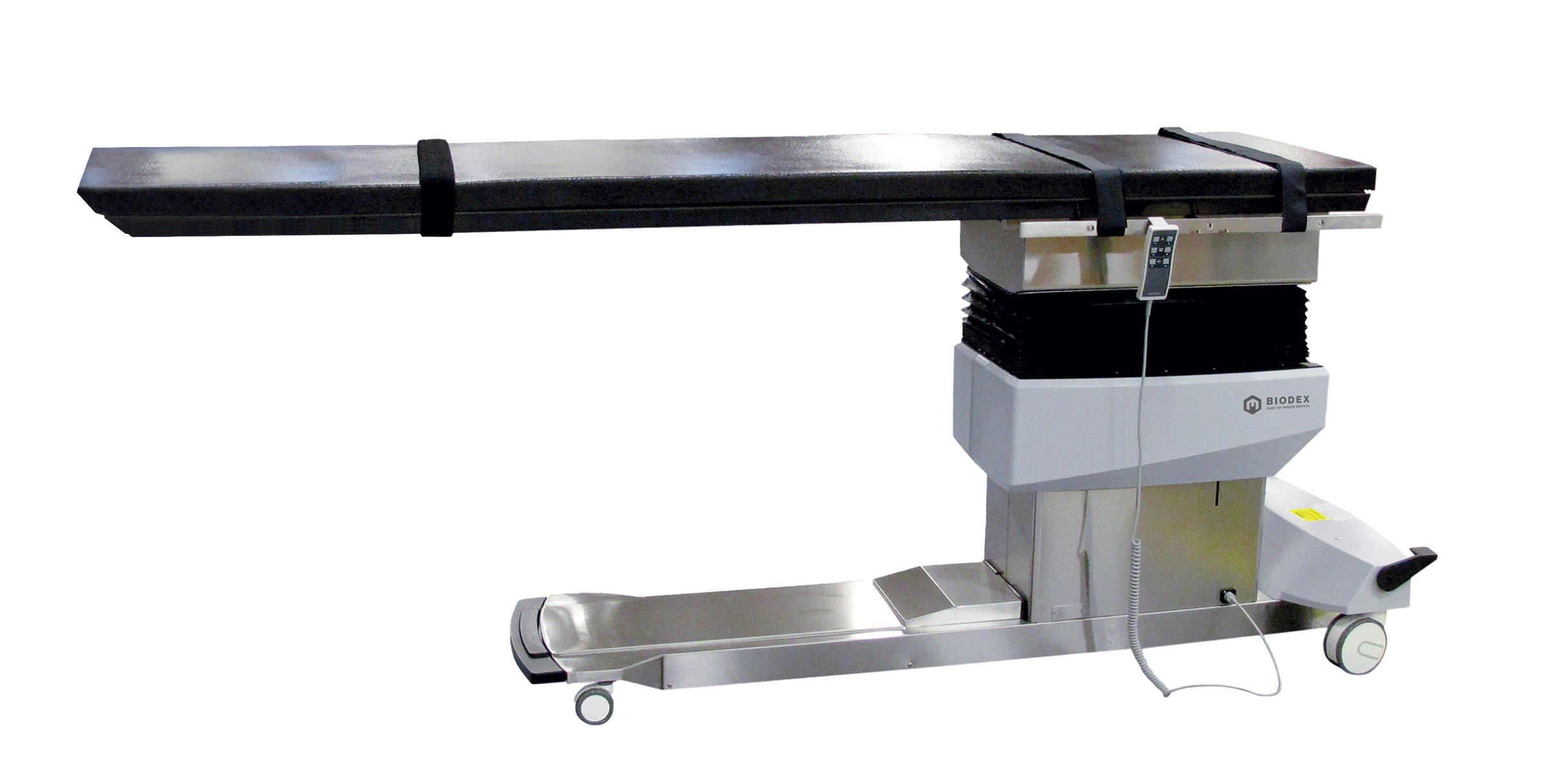

058-870-10Table, Surgical C-Arm - 870, Rectangle, 115 VAC

Export models available.


058-877Controller, Foot
For 058-870 and 058-875 C-Arm Tables.
056-850IV Pole, Rail Mounted
056-865Arm Board, Carbon Fiber, one arm
056-866Arm Board, Carbon Fiber, two arms
Fits 840, 846, 870 and 056-025 tables.
058-864Arm Board, Surgical, Carbon Fiber
058-849Clamp, Accessory, C-Arm Table

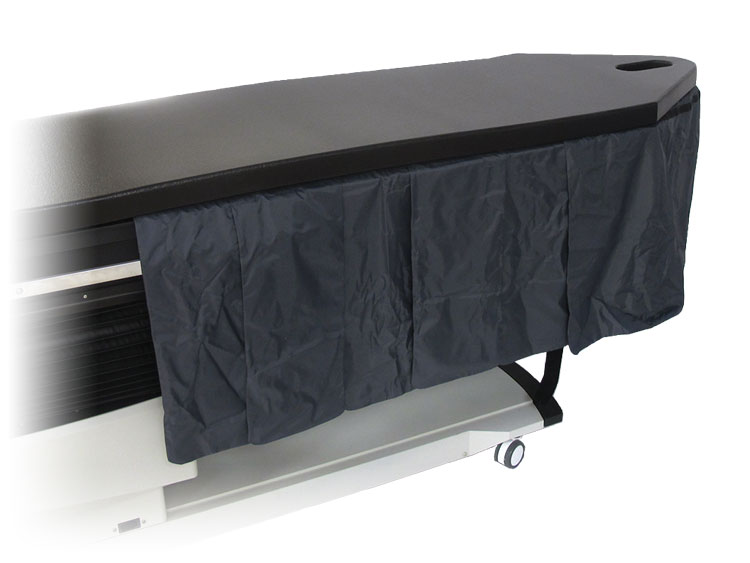

058-856Radiation Shield, Head/Cervical
Fits contoured top Surgical C-Arm Tables 840, 846 and 870.
058-857Radiation Shield, Thoracic/AB
Fits all Biodex Surgical C-Arm Tables

Biodex Delivery Options for all Imaging Tables*

Dock-to-Dock Delivery – the quickest and most economical delivery service. Requires a raised loading dock at delivery address.

White Glove Service – Inside, full-service delivery. Table is uncrated and brought to customer designated area. All debris is removed. Loading dock is not required.

Future Delivery – Request delivery of imaging table for a specified future date. Indicate on P.O. when delivery is preferred along with type of delivery.

*Offered in the US only. Charges for delivery services apply. Ask for details when placing your order.
