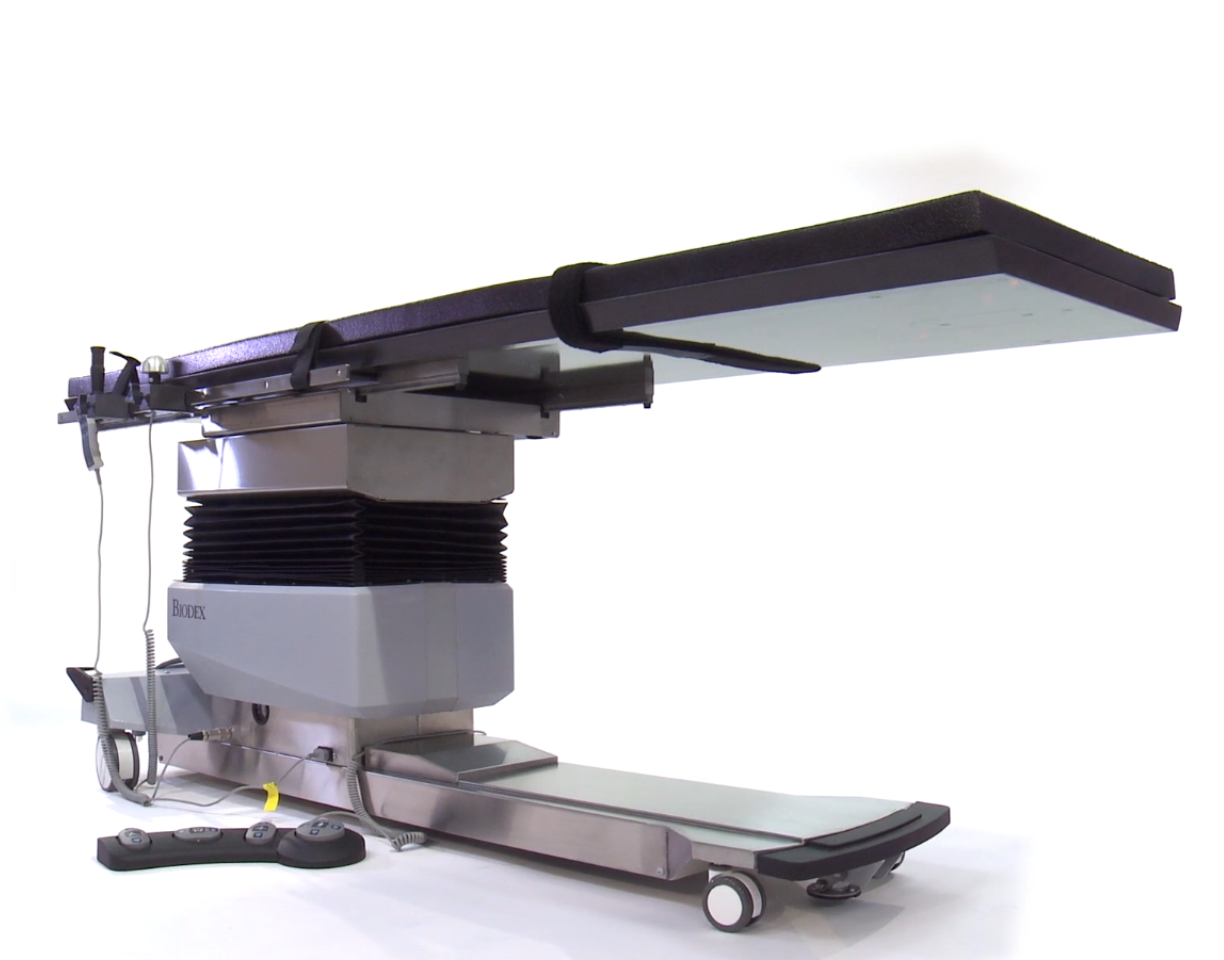

Surgical C-Arm Table - 840
The ideal choice for vascular and endoscopic procedures.
Features
- Free-Float Tabletop – With specially-designed SmoothGlide™ movement
- Carbon-Fiber Tabletop – 0.7 mm attenuation (1.2 mm with pad) design
- Choice of Contoured or Rectangular Design – Contoured tabletop features a face cutout for comfortable prone positioning
- Tabletop Motion – Expansive head-to-toe, 35"
- Radiolucent Area – Extra-large, 75"
- Isocentric Lateral Roll Motion – Maintains image center during tabletop movement, minimizing image distortion (+/- 15°)
- Precision Electric Motor Actuators – No oil or hydraulics
- High-Speed Actuators – Assure quick tabletop positioning, height adjustability, isocentric lateral roll and Trendelenburg motions
- Mushroom-Shaped Control – Ergonomic, for free-float motion
- Table Base – Encased in stainless steel, easy to clean
- Hand and Foot-Operated Controllers – Ensure quick and safe tabletop positioning
- Patient Capacity – 500 lb
- Low Profile Base – For unrestricted C-arm movement
- Accessory Rails
- AC and Battery Power – Standard
- Three year limited warranty
Description
With an advanced low attenuation float top for cardiovascular, endoscopic and pain management procedures, the Surgical C-Arm Table 840 is the ideal choice when stability, access, and precise, quiet, vibration-free positioning are essential. A cantilevered low attenuation carbon-fiber tabletop, with choice of rectangular or contoured design, accommodates portable or ceiling-suspended C-Arms.
The extra-large 75" radiolucent area, free-float X-Y tabletop, motorized control of height, isocentric lateral roll, Trendelenburg motions and the catheter tray extension make the Surgical C-Arm Table 840 ideal for cardiovascular and interventional radiology applications. Functional design provides complete access with reduced radiation exposure to clinicians. Patient comfort and stability are assured by two-inch thick table padding and three adjustable straps with hook and loop fastening.
Control Made Easy
The portable hand-held and foot-operated controllers ensure quick and safe tabletop positioning, and can be positioned from any point around the table. Both controllers offer the freedom to adjust height, lateral roll and Trendelenburg motions. The hand-held controller provides the back-to-level function. The foot-operated controller also releases the tabletop for X-Y positioning and is ideal when hands are busy with other functions.
Freedom of Movement

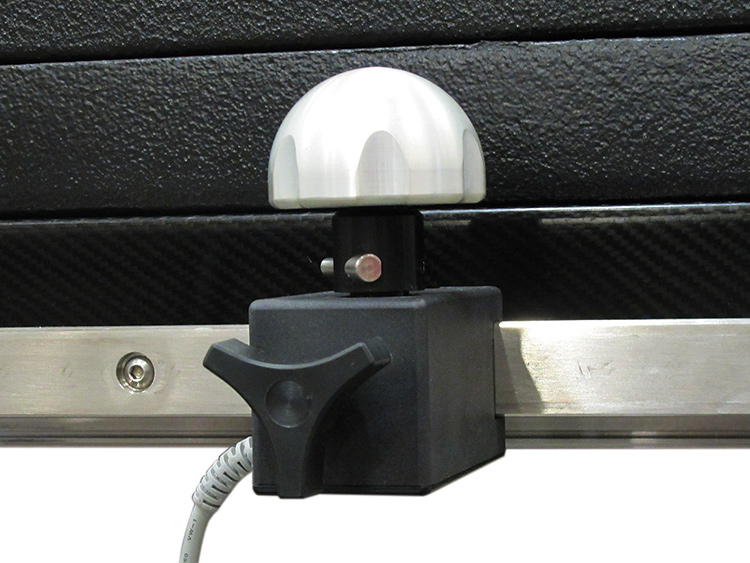

The ergonomic mushroom-shaped control optimizes command of the SmoothGlide™ free-float tabletop. When employing any degree of tilt or roll, X and Y positions are locked to prevent gravity-induced movement. 35" head-to-toe (X) can be maintained during lateral roll; and side-to-side (Y) can be maintained during Trendelenburg positioning.
Isocentric lateral roll motion is a unique movement that maintains center of the focal area, minimizing image distortion. Reducing the time required for adjustments, table or patient, ultimately reduces exposure to scatter radiation.
Models & Ordering

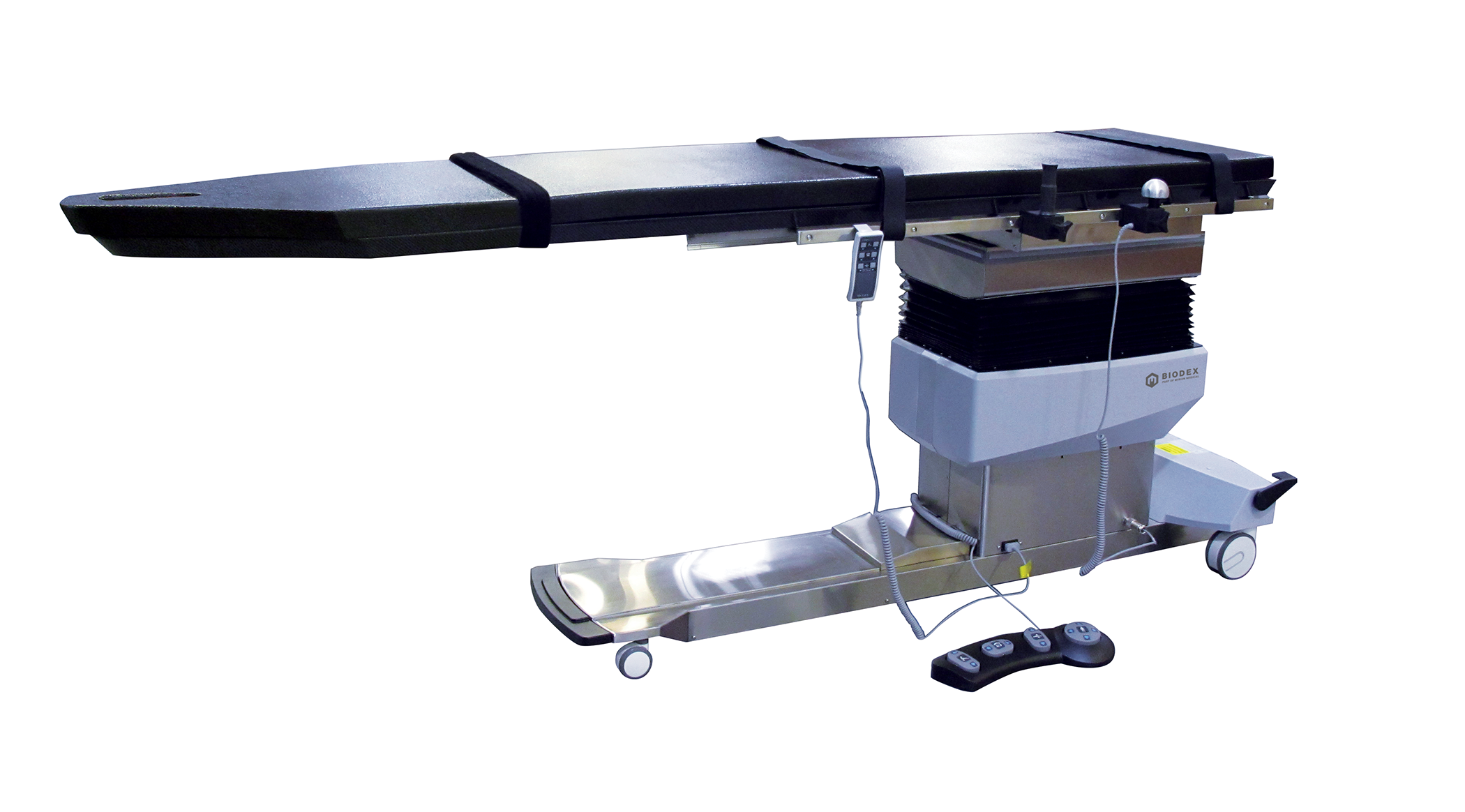

| 058-840 | Table, Surgical C-Arm - 840, Contour, 115 VAC |
| 058-840-10 | Table, Surgical C-Arm - 840, Rectangle, 115 VAC |
Export models available. | |
Optional:
| 058-864 | Arm Board, Surgical, Carbon Fiber |
| 056-866 | Arm Board, Carbon Fiber, two arms |
| 056-865 | Arm Board, Carbon Fiber, one arm |
| 056-850 | IV Pole, Rail Mounted |

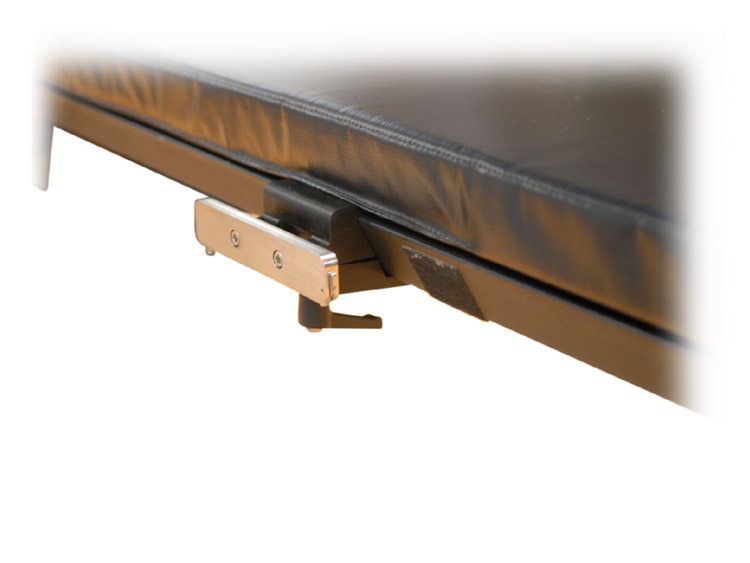

| 058-849 | Clamp, Accessory, C-Arm Table |
| 058-856 | Radiation Shield, Head/Cervical Fits Surgical C-Arm Tables 840, 846 and 870 |
| 058-857 | Radiation Shield, Thoracic/AB Fits Biodex Surgical C-Arm Tables |
056-862 | Battery and Charging Unit, 115 VAC |
| 056-863 | Battery and Charging Unit, 230 VAC |

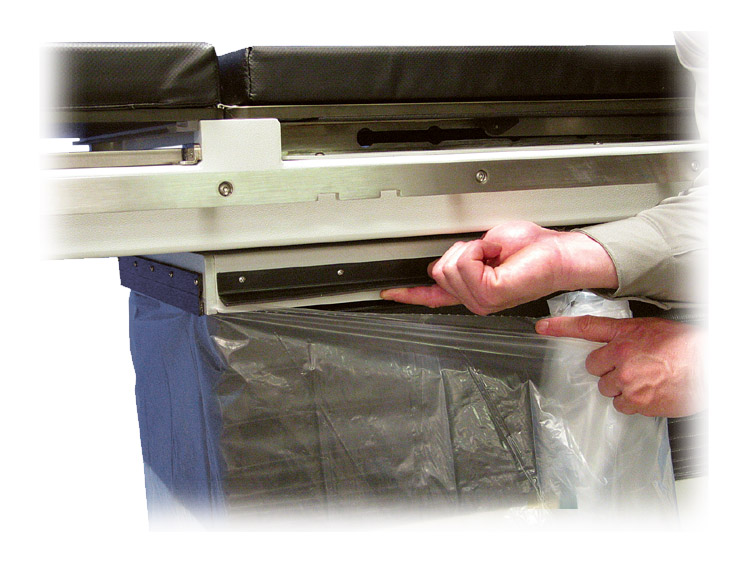

| 056-802 | Bellows Skirt, disposable plastic, 250/roll Fits Surgical C-Arm Tables 840, Urology C-Arm Table and Brachytherapy Table |
| 046-275 | Dispenser, Disposable Protective Roll For 056-802 Bellows Skirt. Wall mounted. |
Biodex Delivery Options for all Imaging Tables*
Dock-to-Dock Delivery – the quickest and most economical delivery service. Requires a raised loading dock at delivery address. White Glove Service – Inside, full-service delivery. Table is uncrated and brought to customer designated area. All debris is removed. Loading dock is not required. Future Delivery – Request delivery of imaging table for a specified future date. Indicate on P.O. when delivery is preferred along with type of delivery. *Offered in the US only. Charges for delivery services apply. Ask for details when placing your order. |
