Ultra Pro™ Ultrasound Table

Biodex Ultrasound Tables: What makes them stand out?

Comfort focused design for quality imaging.

Tag Features

  • Ergonomic design for enhanced patient and sonographer comfort
  • 500-lb patient capacity, suitable for bariatric patients
  • Open chassis design for unimpeded patient access
  • Drop-down, contoured leg section
  • Height range down to 23" accommodates wheelchair transfers and those with ambulatory difficulties
  • Fowler positioning, 0-80 degrees, designed to accommodate natural body extension and sitting position without slide or shift
  • Motorized height, Fowler positioning, Trendelenburg motions and auto-level adjustment
  • Naugahyde® antimicrobial mattress cover with Advanced BeautyGard® provides protection against bacteria
  • Central floor-locking system maintains table stability
  • Durable hand controller activates table positions
  • Allows seated or standing work positions
  • Three year limited warranty

Optional

  • Foot Controller is ideal for when hands are busy with other functions
  • Side rails flush to table for unencumbered patient access

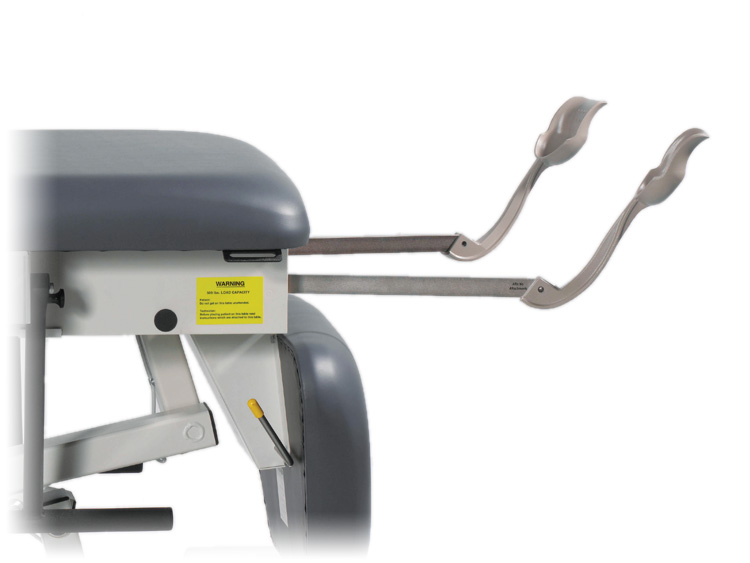

  • Stirrups are designed to cup at the heel for added comfort
  • Articulating Scanning Arm Board, adjustable from 0 to 130 degrees
  • Headrest for easier thyroid and carotid access
  • IV Pole easily attaches for quick convenience
  • Paper Dispenser accommodates a roll of hygienic table paper. Includes a cutter strap.

Description

The Ultra Pro Ultrasound Table is the professional’s choice when performing general ultrasound procedures, including OB/GYN.

The table’s ergonomics and open chassis are designed to reduce sonographer fatigue and minimize patient repositioning, making it easy to achieve quality images in less time.

Fowler positioning, which provides the utmost in patient comfort, an enhanced central floor-locking system offering easier access from around the table, and an antimicrobial vinyl mattress ensuring safety against infection are all standard on the Ultra Pro table.

Customization is made possible with optional items including flush-mounted side rails allowing complete patient access and safety, retractable stirrups with contoured heel cups and an extra-long extension for tall patients, an articulating scanning arm board and a headrest that drops down 15 degrees to allow for carotid studies.

Suitable Procedures

  • Abdomen
  • Aorta
  • Endovaginal**
  • Hysterosonography
  • Testicular
  • Musculoskeletal
  • Venous Reflux*
  • DVT/Lower Extremity Venous**
  • Upper Extremity Venous
  • Renal Transplant
  • SMA
  • Renal
  • Pelvis
  • OB
  • Thyroid
  • Breast
  • Carotid
  • Lower Extremity Arterial
  • Upper Extremity Arterial*
  • Renal Artery
  • Abdominal Doppler
  • Transesophogeal Echo

*Requires optional Articulating Scanning Arm Board.
**Requires optional stirrups.


All motorized tables are ETL product listed to the UL 60601-1 Medical Electrical Equipment Safety Standard.

Accomodates Bariatric Patients

Models & Ordering

058-720 Table, Ultrasound, Ultra Pro™, 115 VAC
Includes Hand Controller.

Export models available.

Related:

058-704 Chair, Ergonomic, Sonography

Optional:

058-741Foot Controller
For 058-700, 058-702, 058-720, and 058-732 Ultrasound Tables.
058-633Side Rails, Folding
058-652Stirrups, Retractable
058-736Arm Board, Articulating Scanning
058-737IV Pole
058-611Dispenser, Paper
with Cutter Strap
058-738Headrest

*Note: Options are installed by the customer.

Replacement:

056-612Table Paper, Hygienic, 12 rolls
18" w x 225' l (46 cm x 69 m)

Biodex Delivery Options for all Imaging Tables*

Dock-to-Dock Delivery – the quickest and most economical delivery service. Requires a raised loading dock at delivery address.

White Glove Service – Inside, full-service delivery. Table is uncrated and brought to customer designated area. All debris is removed. Loading dock is not required.

Future Delivery – Request delivery of imaging table for a specified future date. Indicate on P.O. when delivery is preferred along with type of delivery.

*Offered in the US only. Charges for delivery services apply. Ask for details when placing your order.
