Lynx® High Temperature Color Camera Series

M530

The IST-Quadtek® M530 Series of Visible Light High-Temperature Color Cameras is designed to give you the flexibility to customize electronics, lenses, filters and other options to provide continuous monitoring of your high temperature internal processes.

Request Info
Data Sheet

Tag Features

  • Rotary Kilns and Coolers
    Provide continuous product quality monitoring. Observe ring formation, burner flame and product as it moves down the kiln or cooler. See potential upsets early.
  • Coal Fired Utility Boilers
    Monitor flame shape to adjust burners for maximum combustion and minimum fuel usage.
  • Bark Fired Boiler
    Observe fuel distribution, bed and feeder monitoring, combustion and flame characteristics.
  • Glass Melt Tanks
    View for flame impingement and monitor the crown for dripping. Easily see batch load, flow pattern and any unmelted surface material.

Description

The IST-Quadtek M530 Series of Visible Light High-Temperature Color Cameras is designed to give you the flexibility to customize electronics, lenses, filters and other options to provide continuous monitoring of your high temperature internal processes. Straight, oblique, or right angle lens tube options are available that offer more flexibility in mounting the camera. Add a M721™ Remote Auto Iris Controller to adjust the camera iris from the comfort of the control room providing a clear picture from start-up to full load.

Related Solutions

Related Resources

Do you have a question or need a custom solution? We're here to help guide your research.

Related Products

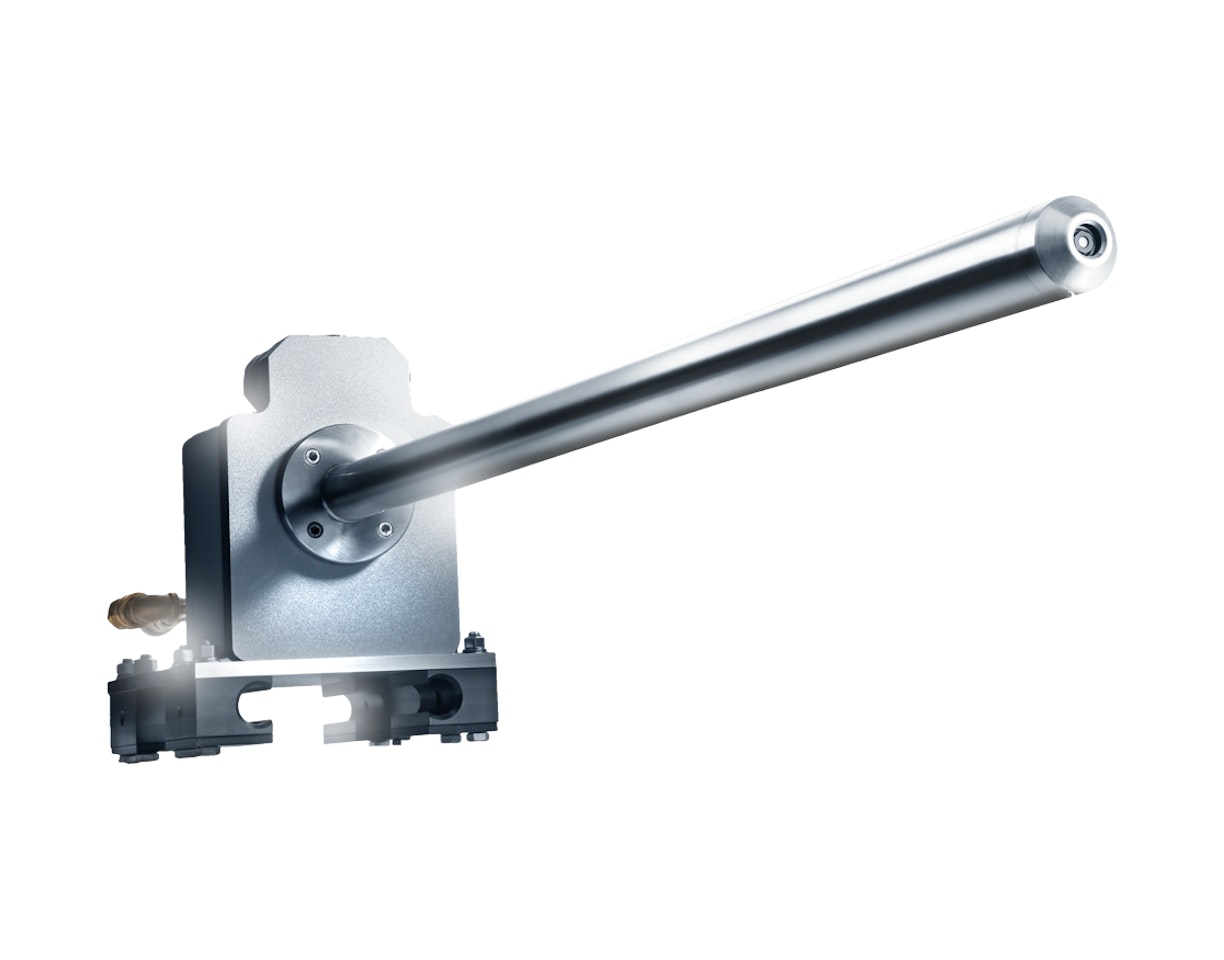

M535 001
