Econo Ultrasound Table

Biodex Ultrasound Tables: What makes them stand out?

Ergonomically designed, economically priced.

Tag Features

  • Ergonomic design helps prevent musculoskeletal injuries – comfortable shoulder, arm and hand positions when scanning
  • 500-lb patient capacity, suitable for bariatric patients
  • Open chassis design for unimpeded patient access
  • Drop-down, contoured leg section
  • Height range down to 23" accommodates wheelchair transfers and those with ambulatory difficulties

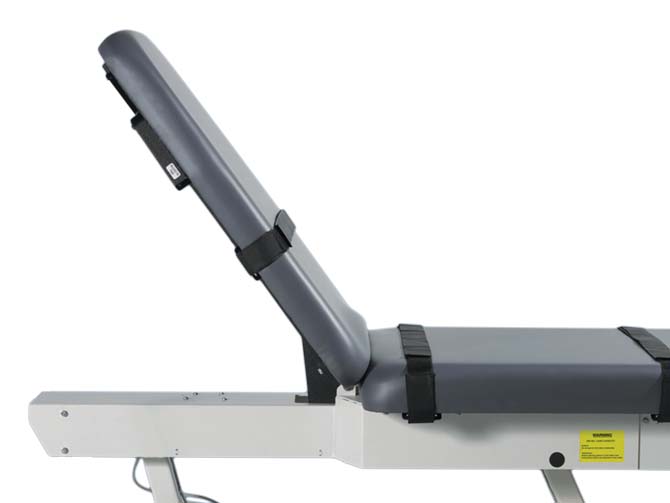

  • Fowler positioning, 0-80 degrees, redesigned to accommodate natural body extension and sitting position without slide or shift
  • Motorized height and Fowler positioning
  • Naugahyde® antimicrobial mattress cover with Advanced BeautyGard® provides protection against bacteria
  • Durable hand controller activates table positions
  • Allows seated or standing work positions
  • Three year limited warranty

Optional

  • Side rails mount flush to table for unencumbered patient access

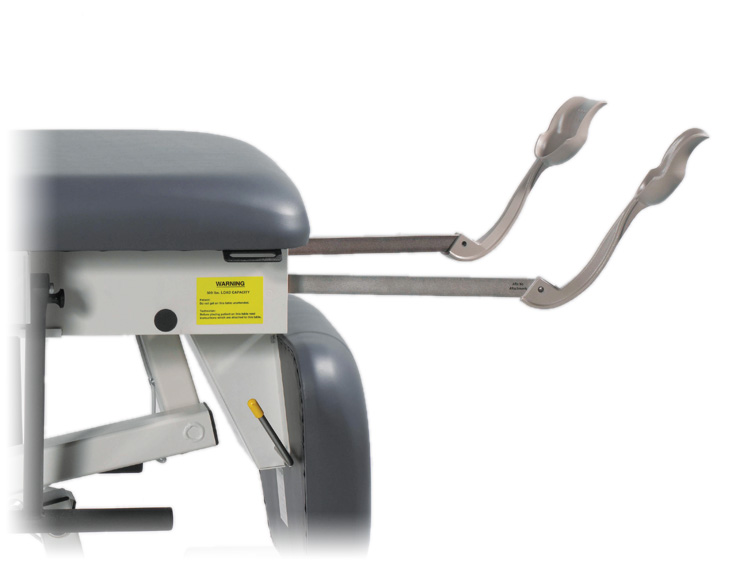

  • Stirrups are designed to cup at the heel for added comfort
  • Articulating Scanning Arm Board, adjustable from 0 to 130 degrees

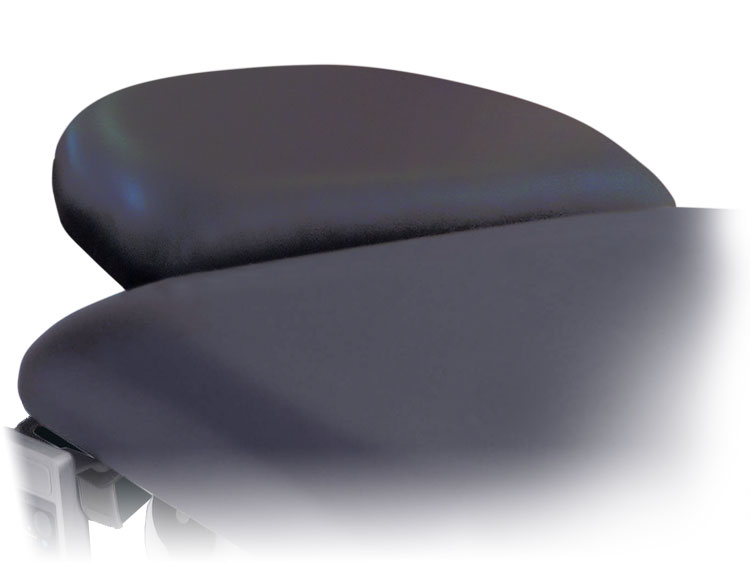

  • Headrest for easier thyroid and carotid access
  • IV Pole easily attaches for quick convenience
  • Paper Dispenser accommodates a roll of hygienic table paper. Includes a cutter strap.

Description

The Econo Ultrasound Table is designed on the same platform as the Ultra Pro table with similar features and functions. To make it a more cost-effective alternative it is offered without Trendelenburg positioning or central floor-locking system.

The same ergonomics have been incorporated into the design of the Econo Ultrasound Table, making it easy for a sonographer to achieve quality images without discomfort to the patient or sonographer.

Motorized height and Fowler positioning which accommodates natural body extension and sitting position, a height range as low as 23" to allow wheelchair transfers and a hand controller are just some of the features that make the imaging experience easy with the Econo Ultrasound Table.

The Econo table can be customized to suit your department needs with an assortment of table options. Flush-mounted side rails enable closer patient access without sonographer contortion. An articulating scanning arm board, adjustable from 0 to 130 degrees and a headrest that drops down 15 degrees to allow for carotid studies are just some of the items which can be added to the table.

Step Up Your Functionality

To get the most out of your table investment, consider our Biodex Ultra Pro™, or Sound Pro™ tables for added features such as Trendelenburg positioning, central floor-locking system, cardiac drop-down panels and foot controller.

Suitable Procedures

  • Abdomen
  • Aorta
  • Endovaginal**
  • Hysterosonography
  • Testicular
  • Musculoskeletal
  • DVT/Lower Extremity Venous**
  • Upper Extremity Arterial*
  • Renal Transplant
  • SMA
  • Renal
  • Pelvis
  • OB
  • Thyroid
  • Breast
  • Carotid
  • Lower Extremity Arterial
  • Renal Artery
  • Abdominal Doppler
  • Transesophogeal Echo

*Requires optional Articulating Scanning Arm Board.
**Requires optional stirrups.

All motorized tables are ETL product listed to the UL 60601-1 Medical Electrical Equipment Safety Standard.

Accomodates Bariatric Patients

Models & Ordering

058-726Table, Ultrasound, Econo, 115 VAC
Includes Hand Controller.

Export models available.

Related:

058-704Chair, Ergonomic, Sonography

Optional:

058-633Side Rails, Folding
058-652Stirrups, Retractable
058-736Arm Board, Articulating Scanning
058-737IV Pole
058-611Dispenser, Paper
with Cutter Strap
058-738Headrest

*Note: Options are installed by the customer.

Replacement:

056-612Table Paper, Hygienic, 12 rolls
18" w x 225' l (46 cm x 69 m)

Biodex Delivery Options for all Imaging Tables*

Dock-to-Dock Delivery – the quickest and most economical delivery service. Requires a raised loading dock at delivery address.

White Glove Service – Inside, full-service delivery. Table is uncrated and brought to customer designated area. All debris is removed. Loading dock is not required.

Future Delivery – Request delivery of imaging table for a specified future date. Indicate on P.O. when delivery is preferred along with type of delivery.

*Offered in the US only. Charges for delivery services apply. Ask for details when placing your order.
